DR-G800

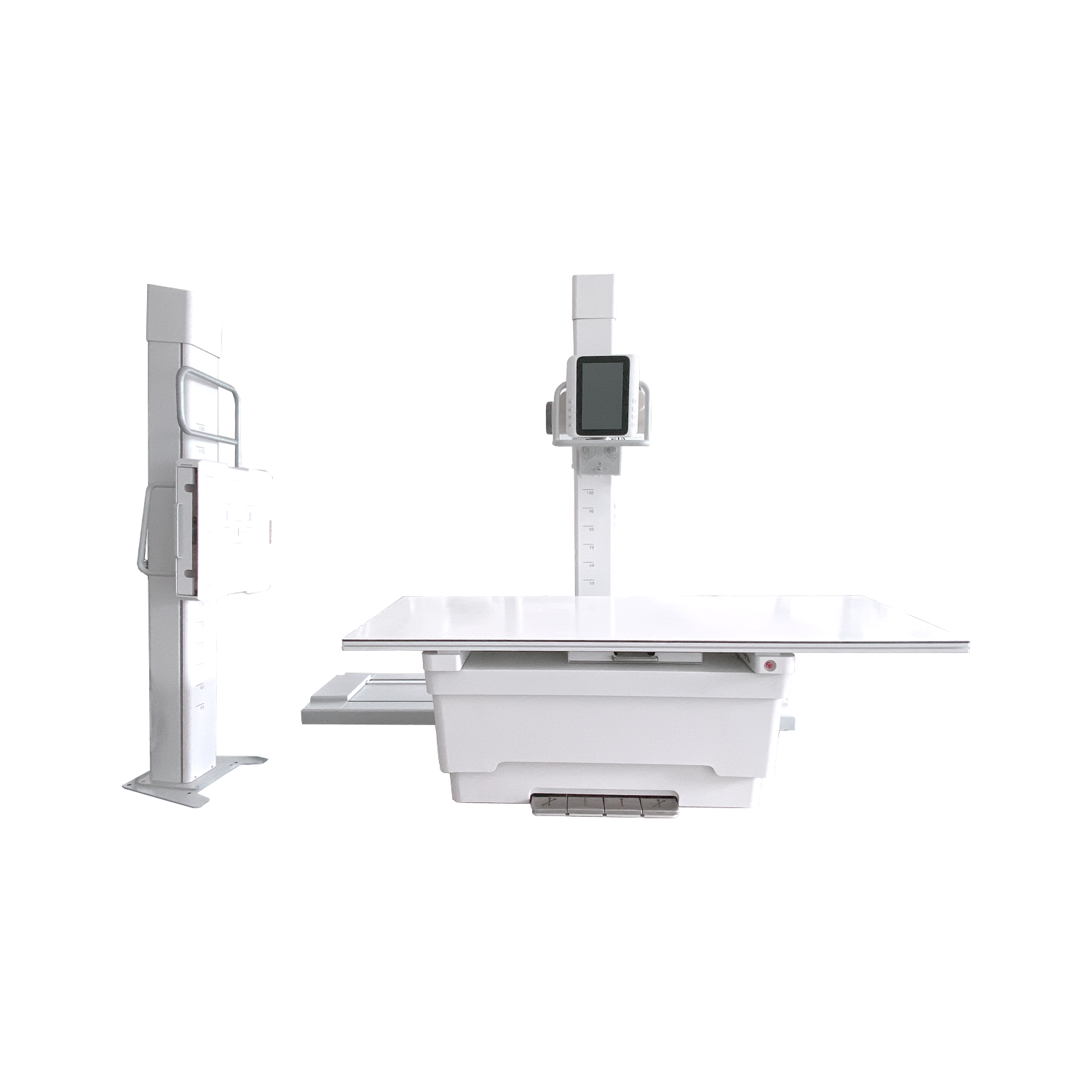

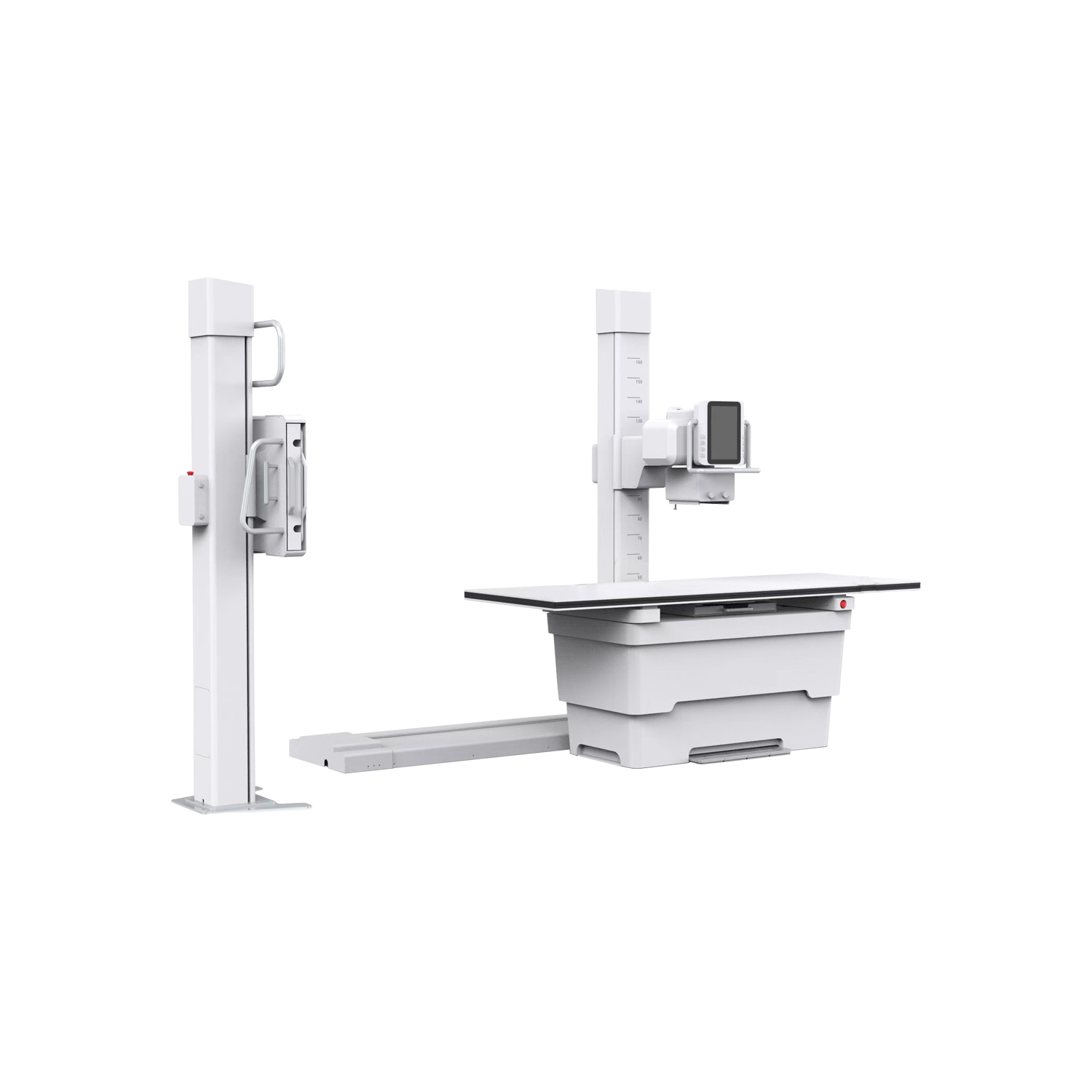

DR mechanic-Complete automatic operation dual stand DR mechanic

Feature:

*Electric lifting table:
precision cutting tool and fork lifting structure,

*high-performance electric push rod,
fast and stable lifting

* Full electric version of the frame:stand up and down motor/manual control,
rail horizontal electric control

* One key to reach, automatic tracking

Part	Item	Specification	Motorized	Manual
Mechanic	Appearance	White metallic paint
Lifting Radiography Table	Lifting table distance	340mm±10mm
	Table Vertical travel distance	900mm±10mm	N	Y
	Table Horizonal travel distance	260mm±10mm	N	Y
	Table Moving control	Pedal control, electromagnetic brake.
	Table locking mode	Electromagnetic lockup,
	Table locking mode	Power-off lockup
	Table surface size	（2300mm×800mm）±5mm）
	Table surface material	Melamine board
	Table surface material	Attenuation rate:<1.7mm AL
	Table loading	>200kg
	Bucky travel distance	510±10mm	N	Y
	Bucky following	Tube stand automatic tracking
	AEC Chamber	Fixed installation dimension:450X470X6mm
	X-ray grid	Moveable X-ray grid,
		with filter frame installation:
		457X457X2.56mm
	Bucky tracking	Bucky track tube stand by elastic push rod
	Detector Chamber	Detector size:460X460X15.1mm
	Emergency stop switch	Yes
Chest Radiography Stand	Moving control	Electric lifting	Y	Y
	Launch force	<50N
	Braking force	>100N
	Bucky	Total Height 220mm±10mm
		Electromagnetic brake
		Power-off brake
	Bucky travel	1400±10mm	Y	N
	Front panel material	ABS
	AEC Chamber	Fixed installation
	AEC Chamber	450X470X6mm
	X-ray grid	Moveable grid size:457X457X3mm
	Detector Chamber	Detector size:460X460X15.1mm
	Handrail	2
	Emergency stop switch	Yes
Floor rail tube stand	Moving control	Electronical lifting	Y	Y
	Moving control	Automatic tracking chest stand
	Launch force	<50N
	Brake force	>100N
	Tube stand travel distance	1720mm±10mm	Y	N
	Tube Vertical travel distance	Lifting distance:1320±10mm	Y	Y
	Collimator	Manual collimator
	Tube arm	Fix length, Axial rotation ±180º,	Alternative
	Tube arm	Rotate stand ±180º	N	Y
	Screen	9.7 inch touch screen
Logo	Screen printing	Customized
